Полностью керамические упорные шарикоподшипники

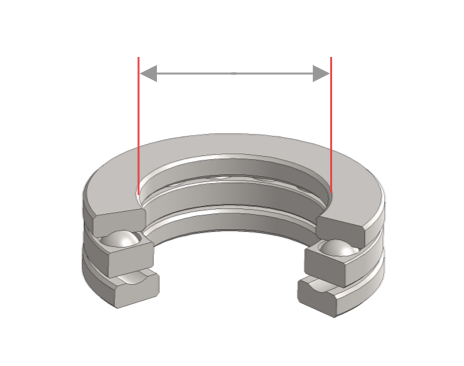

Ceramic thrust ball bearing constructed entirely of ceramic material. Inner/outer races and balls are made of either Silicon Nitride (Si3N4), Zirconium Oxide (ZrO2) or Silicon carbide (SiC). Configurations retainers can be made of composite materials such as PEEK, PTFE or full complement versions without retainers are available for your heavily radial loaded applications.

ФИЛЬТРЫ

БД

45 mm(5)

50 mm(4)

55 mm(5)

60 mm(7)

65 mm(6)

70 mm(3)
ИЗ

100 mm(3)

105 mm(3)

110 mm(3)

115 mm(2)

120 mm(1)

125 mm(1)

130 mm(2)

140 mm(2)

65 mm(1)

70 mm(1)

73 mm(1)

78 mm(2)

85 mm(2)

90 mm(2)

95 mm(4)
Ширина

14 mm(2)

16 mm(1)

17 mm(1)

18 mm(2)

20 mm(1)

22 mm(1)

25 mm(1)

26 mm(2)

27 mm(2)

28 mm(1)

31 mm(1)

35 mm(4)

36 mm(2)

39 mm(2)

40 mm(1)

43 mm(1)

48 mm(1)

51 mm(2)

56 mm(2)

номер части	Я БЫ	ИЗ	Ширина	Динамическая нагрузка	Статическая нагрузка
51314	70 mm	125 mm	40 mm	238700 N	107100 N
51214	70 mm	105 mm	27 mm	132300 N	50960 N
51114	70 mm	95 mm	18 mm	79100 N	27510 N
51413m	65 mm	140 mm	56 mm	314300 N	151900 N
51413	65 mm	140 mm	56 mm	345800 N	161700 N
51313m	65 mm	115 mm	36 mm	186900 N	84700 N
51313	65 mm	115 mm	36 mm	200900 N	88900 N
51213	65 mm	100 mm	27 mm	133700 N	54950 N
51113	65 mm	90 mm	18 mm	75600 N	27440 N
51412m	60 mm	130 mm	51 mm	282800 N	144200 N
51412	60 mm	130 mm	51 mm	314300 N	155400 N
51312m	60 mm	110 mm	35 mm	172200 N	81200 N
51312	60 mm	110 mm	35 mm	186900 N	86100 N
51212m	60 mm	95 mm	26 mm	111300 N	47320 N
51212	60 mm	95 mm	26 mm	198300 N	49280 N
51112	60 mm	85 mm	17 mm	69020 N	26530 N
51411m	55 mm	120 mm	48 mm	250600 N	134400 N
51311m	55 mm	105 mm	35 mm	158200 N	77700 N
51311	55 mm	105 mm	35 mm	172200 N	82600 N
51211	55 mm	90 mm	25 mm	111300 N	48160 N
51111	55 mm	78 mm	16 mm	57050 N	21770 N
51410m	50 mm	110 mm	43 mm	191800 N	103600 N
51310	50 mm	95 mm	31 mm	141400 N	66710 N
51210	50 mm	78 mm	22 mm	90300 N	39410 N
51110	50 mm	70 mm	14 mm	52850 N	19670 N
51409m	45 mm	100 mm	39 mm	165200 N	91700 N
51409	45 mm	100 mm	39 mm	183400 N	98000 N
51309	45 mm	85 mm	28 mm	114800 N	55230 N
51209	45 mm	73 mm	20 mm	78400 N	34510 N
51109m	45 mm	65 mm	14 mm	39620 N	16660 N
